水下基礎基樁_Ocean pile and Floating vessel
將積累之特殊造船技術與海上風電基礎生產整合，以求提升技術及生產能力。
Trying to improve technology and production capacity by integrating the accumulated special ship
building technology with offshore wind power base production.
|
使用 CNC 技術精準將板邊倒角 With the CNC technology to chamfer plate edges in a fast and accurate way. |
|
|

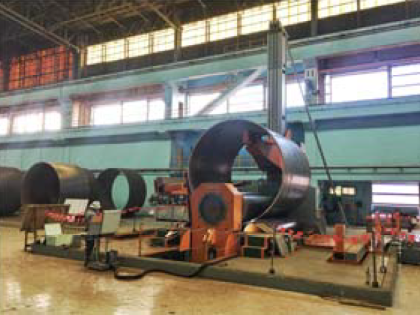

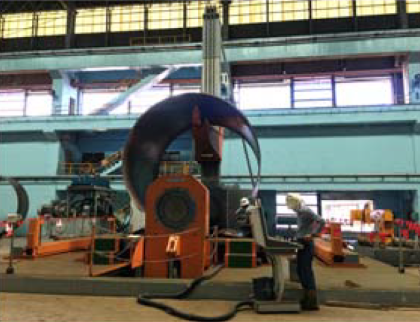

4軸3,000噸級捲板機將鋼板捲製完成 Bending machine with hydraulic 4-roller give the steel plate a certain curvature and roll tube segments (cans). |
|
|

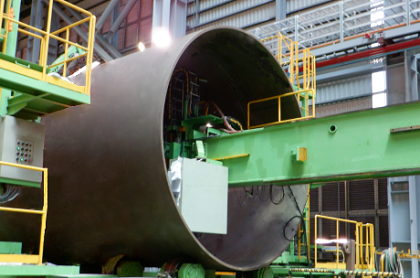

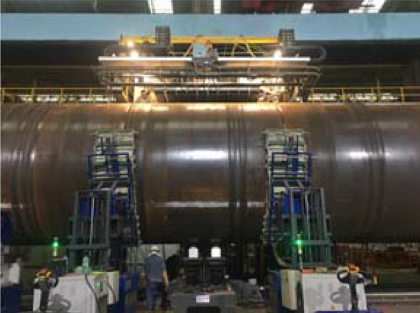

自動潛弧焊機（SAW），可以有效減少焊接錯誤，保證焊接精度 Automatic welding machine with SAW can minimize the welding mistake. |
|
|

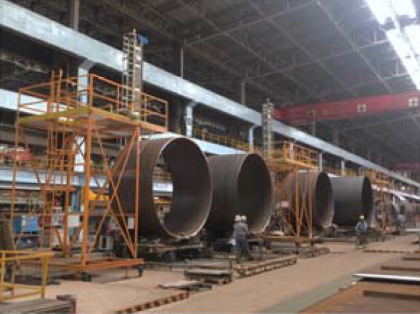

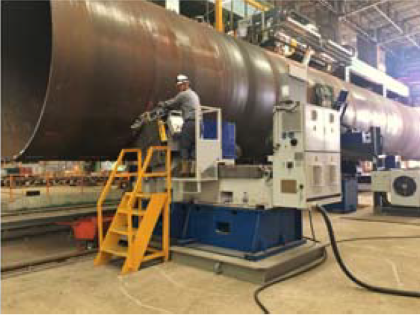

背鏟以消除點焊和內焊道引起的缺陷 或殘留渣，提高焊接質量 This process can increase welding quality by removing the defect or residue slag cause by the tack welding and the root pass of longitudinal inside welding. |
|
|
自動潛弧焊機（SAW），可以有效減少焊接錯誤，保證焊接精度。 Automatic welding machine with SAW can minimize the welding mistake. |
|
|
L線銲接完成後回到捲板機上調整真 圓度 Back to the bending machine to adjust the roundness after L-line welding. |
|
|

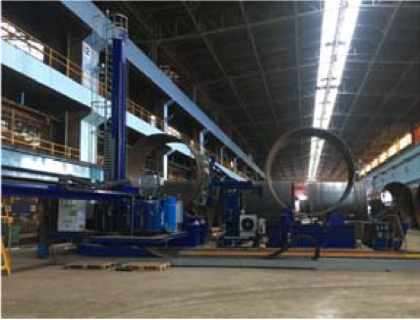

剪力鍵將於L線銲道後以十字臂銲機執行 Shear key will be welded by an automatic column and boom welding machine after longitudinal welding. |
|
|
自動潛弧焊機（SAW），可以有效減少焊接錯誤，保證焊接精度 Automatic welding machine with SAW can minimize the welding mistake. |
|
|
背鏟以消除點焊和內焊道引起的缺陷或殘留渣，提高焊接質量 This process can increase welding quality by removing the defect or residue slag cause by the tack welding and the root pass of longitudinal inside welding. |
|
|
自動潛弧焊機（SAW），可以有效減少焊接錯誤，保證焊接精度 Automatic welding machine with SAW can minimize the welding mistake. |
|
|

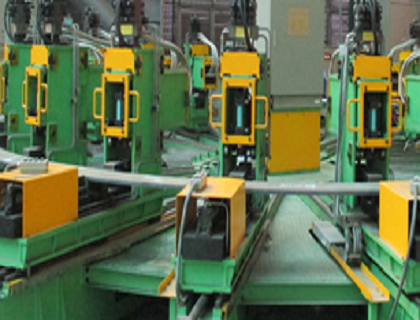

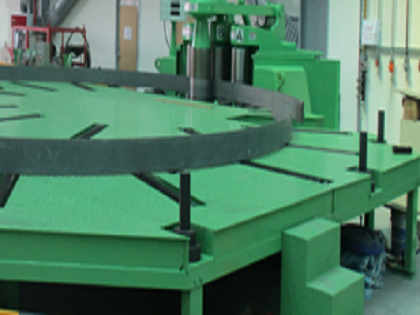

四輪立式彎板機，特製寬工作台，專用於彎製(bending)細長鋼板 4-roller vertical flange bender with wide worktable specialized for bending long and slender sheets. |
|
|

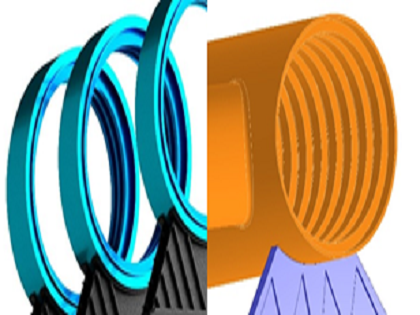

製作內或外環形加強材(Ring stiffeners) Fabrication of inner or outer reinforcing ring stiffeners. SAW銲接前，組裝環形加強材並進行點銲 Prior to SAW welding, ring stiffeners are assembled and tack welded. |
|
|

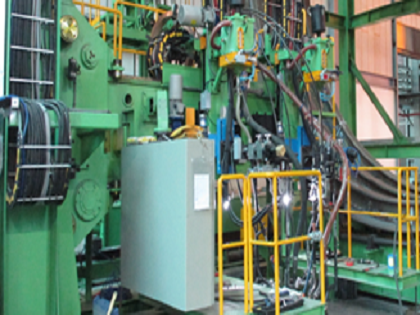

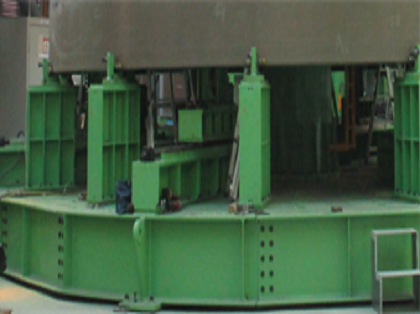

用於組裝及點銲環形加強材多功能設備 Multi-purpose equipment for ring stiffeners assembled and tack welded 將環形加強材組裝於管段上 Ring stiffeners are assembled on tube segment. |
|
|
銲接管段及環形加強材間之SAW銲機 SAW welder between tube segment and ring stiffener. 不僅可銲接柱段，亦可銲接錐段管件 Not only cylindrical but conical tubes can be also welded. |
|
|
於R-線設備上生產之工件 Products manufactured in R-line facilities. |
|
|

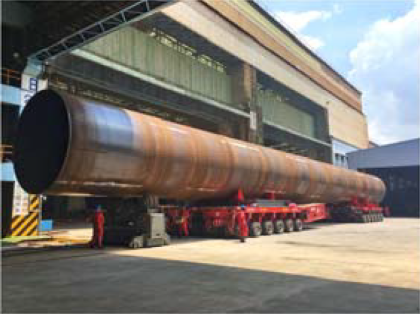

水下基樁製造完成後，將以SPMT自大組區運送至儲放區 After completion of the PP, SPMT will be used to transport PP from the grand assembly area to the storage area. |
|
|

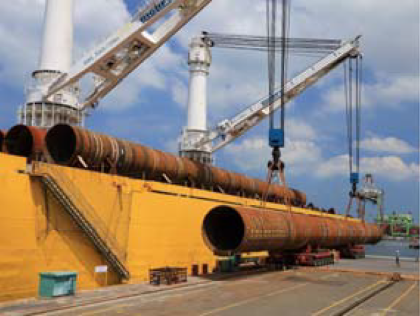

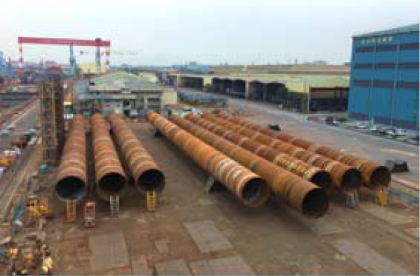

儲放區位於重件碼頭旁，24支儲位，30分鐘內可完成起水作業 The storage area next to the heavy cargo quay with 24 pcs PP storage capacity and can execute load out in 30 mins for each PP. |
|
|
重件碼頭具備30噸每平方米之地耐力，SPMT可直接運輸上船 Heavy cargo quay with 30 t /m2 bearing capacity is suitable for SPMT transportation and even for FOB condition. |
|
